PISTON KIT HONDACR125 92-99 54.50, WOSSNER 8020D050,

Description

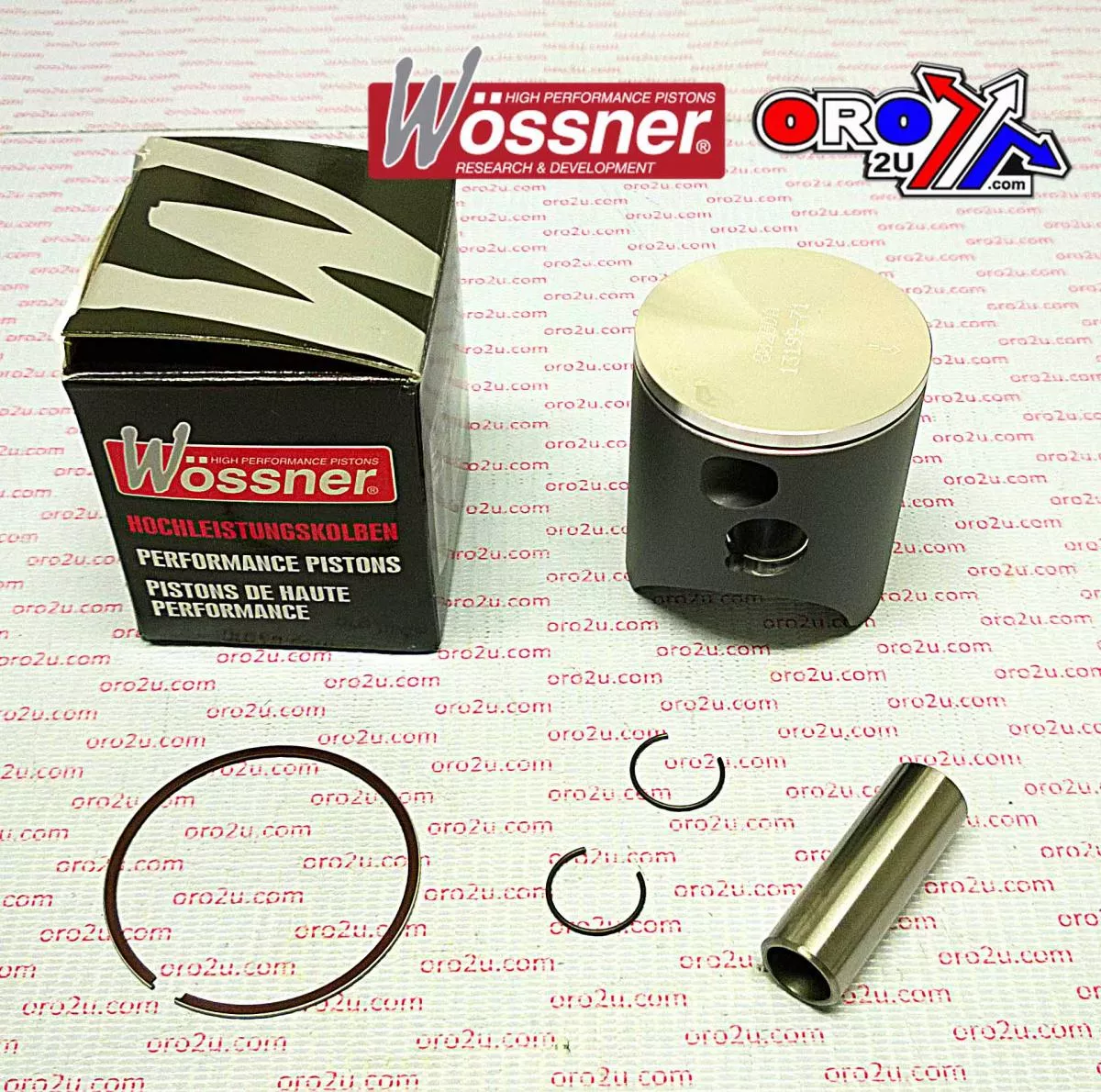

Wossner Forged Piston Kit 54.50mm Bore – Honda CR125 (1992–1999)

This Wossner forged piston kit is designed for Honda CR125 models from 1992 to 1999. With a 54.50 mm bore and 54.45 mm piston diameter (+0.50 mm oversize), it is ideal for cylinders that require significant oversizing. The forged piston construction ensures long-lasting durability and resistance to thermal and mechanical stresses. Manufactured in Germany with precision engineering.

Features

• Forged piston provides increased strength and reliability
• Superior heat transfer capability to cylinder walls
• Elliptical design promotes even thrust load distribution and minimises localised stress
• German-made for precise tolerances and consistent quality

Specifications

• Bore Size: 54.50 mm
• Piston Diameter: 54.45 mm
• Engine Displacement: 125 cm³
• Stroke: 54.50 mm
• Clearance: 0.05 mm
• Compression Height: 28.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

• Piston Kit: 8020D050
• Lock: CW15
• Pin: WP032
• Ring Set: RSB5450
• Rod: P2009

Vehicle Fitments

• Honda CR125 (1992–1999)
