MTX Audio Mono Block Powersports Amplifier

Description

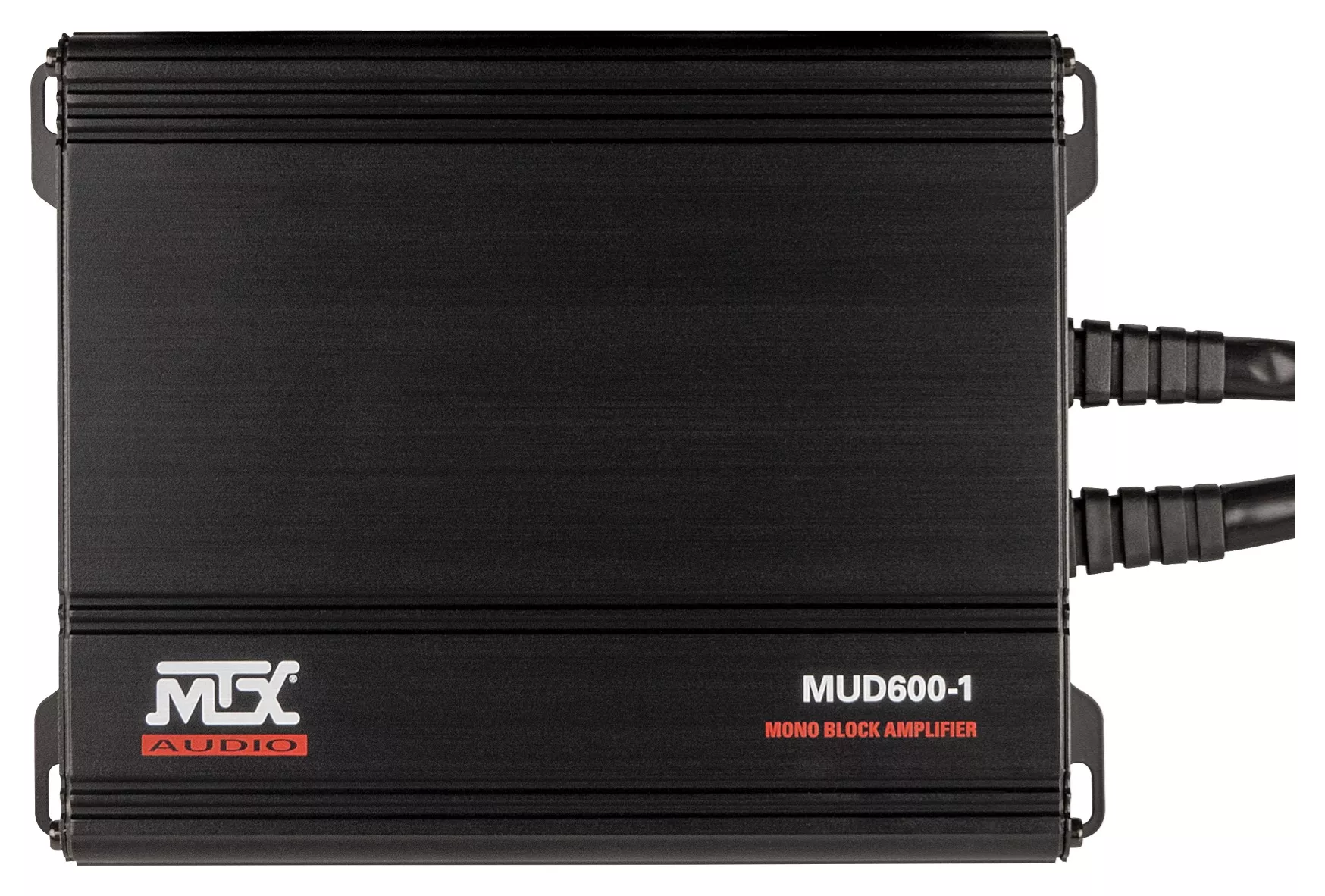

MTX Audio Mono Block Powersports Amplifier

The MTX MUD600-1 employs class D topology to deliver outstanding sound quality and exceptional thermal efficiency. As a mono block amplifier, it can produce a robust 600-watt RMS power output. Designed with weather resistance in mind, it features a conformal coated circuit board and control covers to safeguard against moisture intrusion. Its innovative design incorporates a pigtail that conveniently houses all necessary wiring for power, ground, and signal connections, eliminating the need for direct amplifier connections. This pigtail serves as a protective barrier, preventing internal components from being compromised by moisture, dirt, and other potential hazards.

Features:

• Mono-channel
• Small chassis
• Conformal coated circuit board
• Surface mount technology
• Variable crossover
• Stainless steel hardware
• Rubber gaskets around RCA connectors
• Plastic cover over control adjustments

Specifications:

• Description: MONO BLOCK
• 4Ω RMS Power Output: 300W X 1 CHANNEL
• 2Ω RMS Power Output: 650W X 1 CHANNEL
• 1Ω RMS Power Output: NA
• Signal to Noise Ratio: 85 DBA
• Topology: CLASS D
• THD: <1.0%
• Frequency Response: 10HZ – 250HZ
• Crossover: VARIABLE LOW @ 40 – 250HZ
• Height: 1.85″ (47MM)
• Width: 5.51″ (140MM)
• Depth: 7.36″ (187MM)
